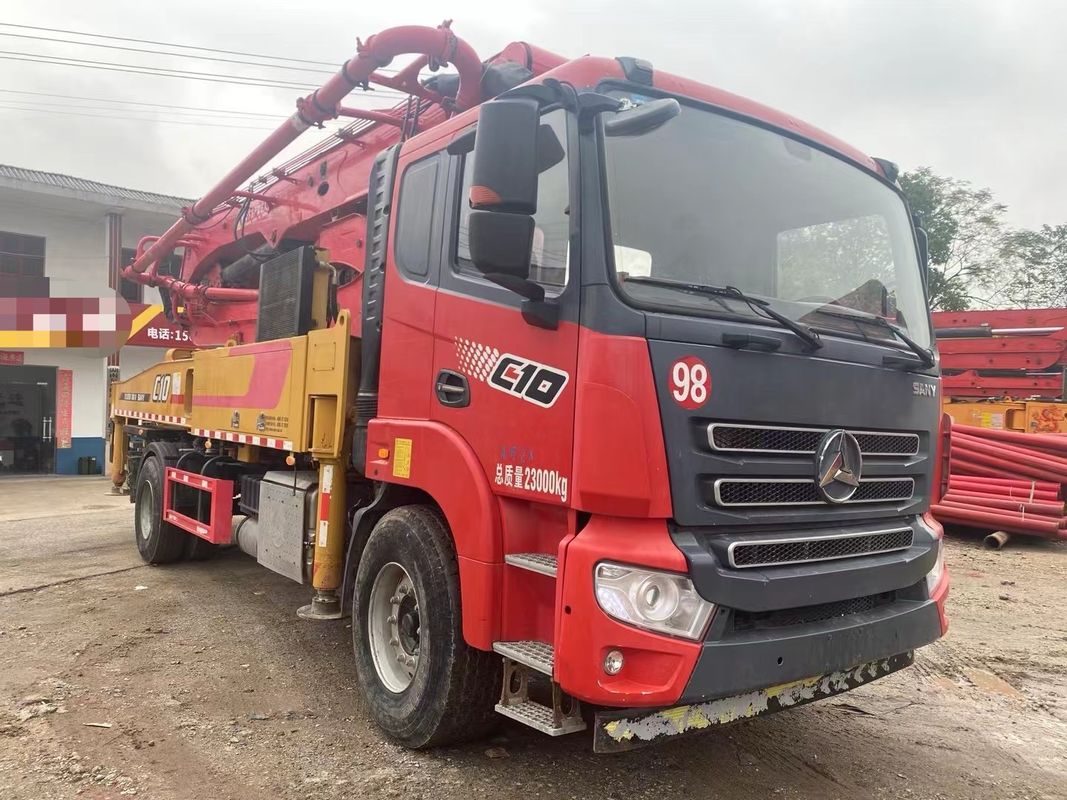

Sany 39-meter concrete pump truck with excellent condition

Name: Sany 39-meter concrete pump truck with excellent condition
Brand: Shenzhen New LAND International Logistic Co., Ltd.
SKU: SY5230THBF
Price: 1,090,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sany

Model Number: SY5230THBF

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                sany concrete line pump, sany inline concrete pump, truck concrete line pump


Date Of Manufacture:	2021	Max Vertical Reach:	39m
Max Horizontal Reach:	34m	Gross Mass:	23000kg
Make Theoretical Output:	120m³/h	Max Theoretical Output Pressure:	13MPa
Theoretical Concrete Discharge Under High Pressure:	70m³/h	Low Pressure Of Theoretical Pumping Pressure:	8MPa

Date Of Manufacture:	2021
Max Vertical Reach:	39m
Max Horizontal Reach:	34m
Gross Mass:	23000kg
Make Theoretical Output:	120m³/h
Max Theoretical Output Pressure:	13MPa
Theoretical Concrete Discharge Under High Pressure:	70m³/h
Low Pressure Of Theoretical Pumping Pressure:	8MPa

Sany 39-meter concrete pump truck with excellent condition

Sany 39-meter Concrete Pump Truck with Excellent Condition

Key Specifications

Attribute	Value
Date of manufacture	2021
Max vertical reach	39m
Max horizontal reach	34m
Gross mass	23000kg
Make theoretical output	120m³/h
Max theoretical output pressure	13MPa
Theoretical concrete discharge under high pressure	70m³/h
Low pressure of theoretical pumping pressure	8MPa

Product Features

Reliable Chassis Configuration

Equipped with a chassis independently developed by SANY (model SYM5230THB1F) with strong carrying capacity that adapts to various complex road conditions. Powered by a D09C6-320E0 engine with maximum power of 229kW/1900rpm and 8.7L displacement, providing stable power support for pump truck operations.

Superior Driving Performance

Maximum driving speed of 90km/h enables quick transfer between construction sites. Features carefully designed suspension and braking systems to ensure comfort and safety during operation.

Advanced Hydraulic System

Open hydraulic system operates at 32MPa pressure with fast response and minimal commutation impact for stable pumping operation. Incorporates energy-saving technologies including casting energy-saving main valves to improve efficiency, reduce consumption, and extend component lifespan.
