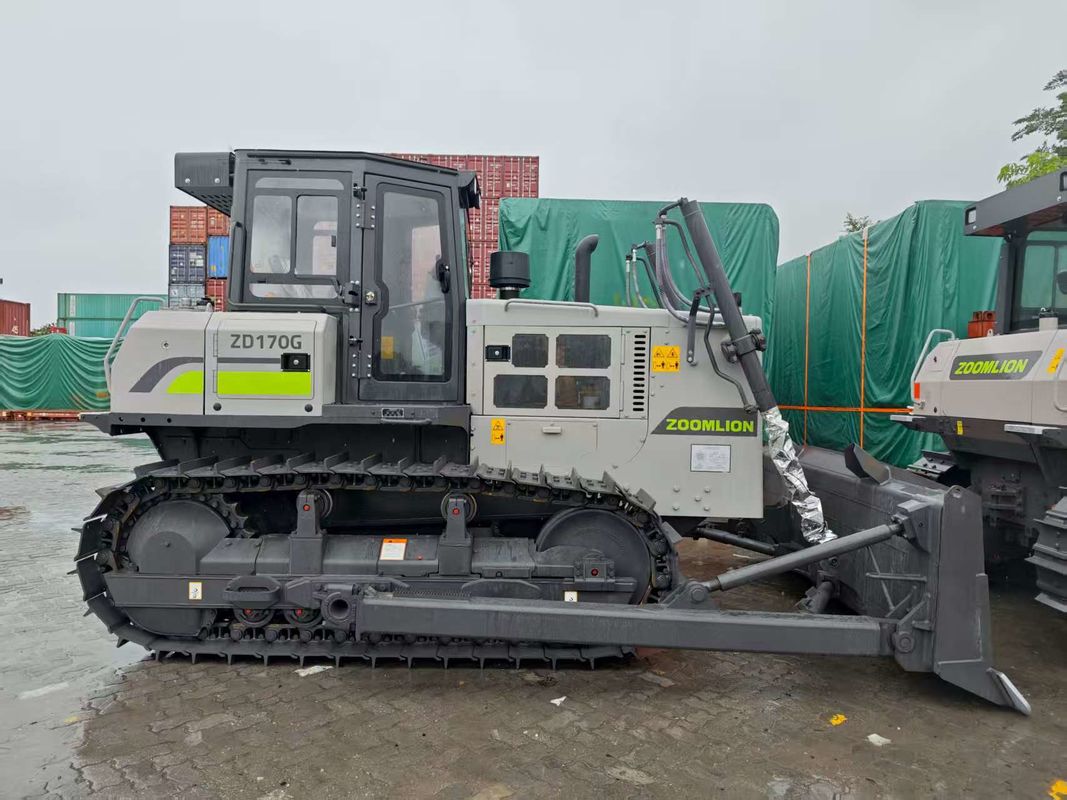

ZOOMLION Crawler Bulldozer Model ZD170G Powerful Performance

Name: ZOOMLION Crawler Bulldozer Model ZD170G Powerful Performance
Brand: Shenzhen New LAND International Logistic Co., Ltd.
SKU: ZD170G
Price: 1,090,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zoomlion

Model Number: ZD170G

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                Model ZD170G Crawler Bulldozer, ZOOMLION Crawler Bulldozer, Powerful Performance Crawler Bulldozer


ZOOMLION Crawler Bulldozer Model ZD170G Powerful Performance

ZOOMLION ZD170G Crawler Bulldozer - Powerful Performance

Product Overview

The Zoomlion ZD170G crawler bulldozer combines advanced technology with sophisticated manufacturing to deliver efficient and stable operation for earthworks, site leveling, and other demanding construction applications. Engineered to adapt to complex working conditions, it helps projects achieve cost reduction and efficiency improvement goals.

Key Specifications

Model: ZD170G

Brand: Zoomlion (ZOOMLION)

Rated Power: 129kW (175 horsepower)

Speed Range: 1800-2200r/min

Operating Weight: 17000kg

Dimensions: 6800×3400×3200mm

Core Features

Powerful Performance: High-performance engine delivers stable output and abundant torque for heavy-duty pushing and loosening operations.
Durable Construction: High-strength crawler and chassis with optimized design provide excellent wear and impact resistance for harsh environments.
Operator Comfort: Spacious cab with shock-absorbing seat, intelligent temperature control, and intuitive controls reduce fatigue during extended operation.
Precision Control: Responsive hydraulic system enables accurate blade and ripper movement for fine grading and slope trimming tasks.

Application Scenarios

Industry	Typical Operations	Benefits
Earthworks	Roadbed leveling, site backfilling	Efficient large-scale earth transfer
Mining	Ore stripping, mine leveling	Stable operation in heavy-duty conditions
Agriculture	Land clearing, farmland leveling	Supports land reclamation projects
Water Conservancy	Dyke construction, channel excavation	Precision forming for quality results

Technical Specifications

Category	Specification	Details
Basic Information	Model	ZD170G
	Type	Crawler Bulldozer
	Brand	Zoomlion
Power System	Engine	Engineering-grade
	Rated Power	129kW (175HP)
	Speed Range	1800-2200r/min
Operating	Blade Capacity	4.5-5.5m³
	Max Pushing Force	170kN
	Ripper Teeth	Single/multi-tooth options

Troubleshooting Guide

Issue	Possible Cause	Solution
Crawler deviation	Uneven tension or guide wheel wear	Adjust tension, inspect/replace guide wheel
Low engine power	Clogged fuel filter or air intake	Clean/replace filter, check air system
Slow blade movement	Contaminated oil or pump issues	Replace hydraulic oil, inspect pump
Cab noise	Worn seals or shock absorbers	Replace seals, overhaul shock system
